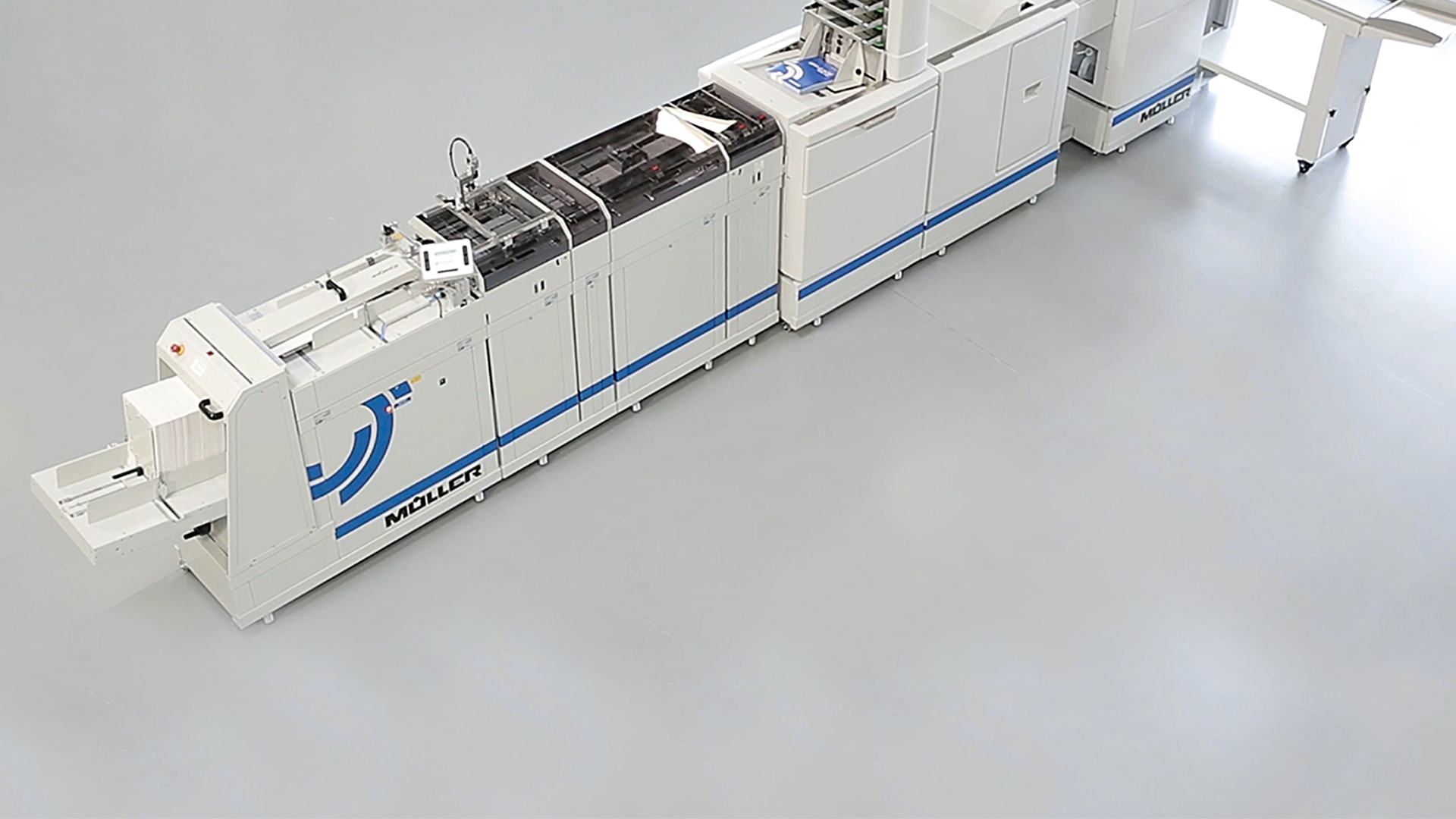

Müller 8100. Compact Multiformat
Inserting System

The entry into the lower to medium production area: the Müller 8100. It processes envelopes from DL to B4, in particular C4 Pocket. The formats on the inserting unit can be adjusted automatically.

Thanks to the safe processing and ultimate flexibility of the modular design, the Müller 8100 adapts perfectly to tomorrow‘s requirements. Especially for processing short runs or reprints, it is considered the perfect solution due to its fast throughput times.

Up to 4000 insertions per hour can be processed with the Müller 8100. Whether with or without reading, folded inserts or pre-folded – almost anything is possible. Nearly all transaction applications, from personalized long and short runs to direct mail applications, can be handled effortlessly with the Müller 8100.


Configuration flexibility • customer-specific system design
Dynamic speed • automatic speed adjustment
Envelope flexibility • largest selection with all intermediate formats
Process control • document monitoring and Camera Job Control
Flexible processing • cut-sheet




Technical Data

Performance Müller 8104 4.000 (DL - B4)
Document   Cut sheet
(60) 70 - 130 (170) g/m²
93 - 315 mm (4 - 12") paper length
Processing   Cut sheet
Face up, foot first, Z-A
Folder   All types of fold up to 9 sheets (half fold up to 16 sheets)
Interface   Central screen & local displays
Document monitoring
Interface for productions management systems (PMS)
Enclosures   Min. 93 x 210 mm
Max. 300 x 315 mm
60 - 200 g/m²
Envelopes   Min. 105 x 225 mm (h x w)
Max. 353 x 353 mm (h x w)
70 - 120 g/m²
12 mm filling capacity
